Single storey house extension

Maplehurst, West Sussex
12 WEB 1
Tags: Maplehurst, West Sussex
12 WEB 1
12 WEB 3
12 WEB 4

We were involved in preparation of building regulations and structural design.

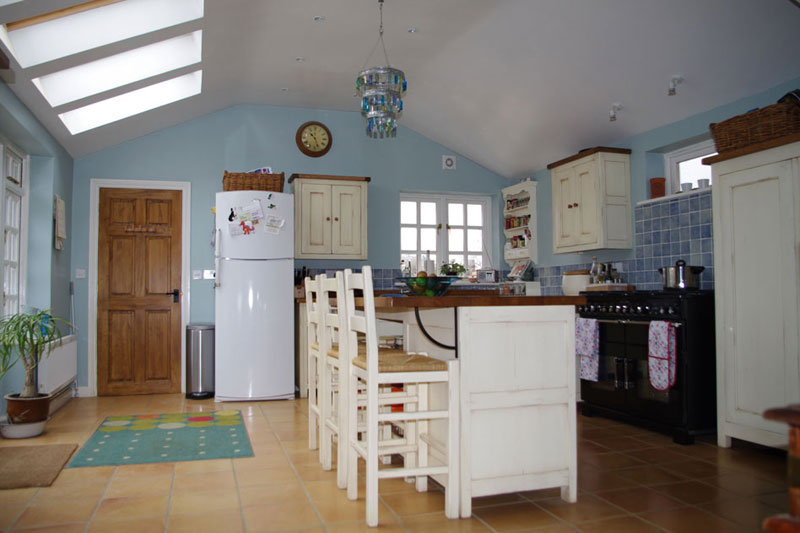

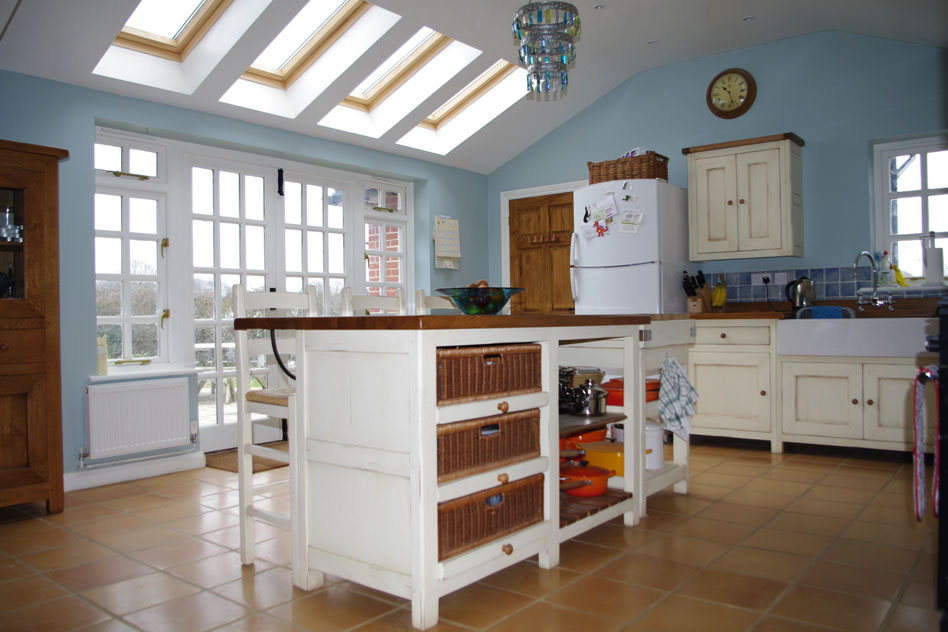

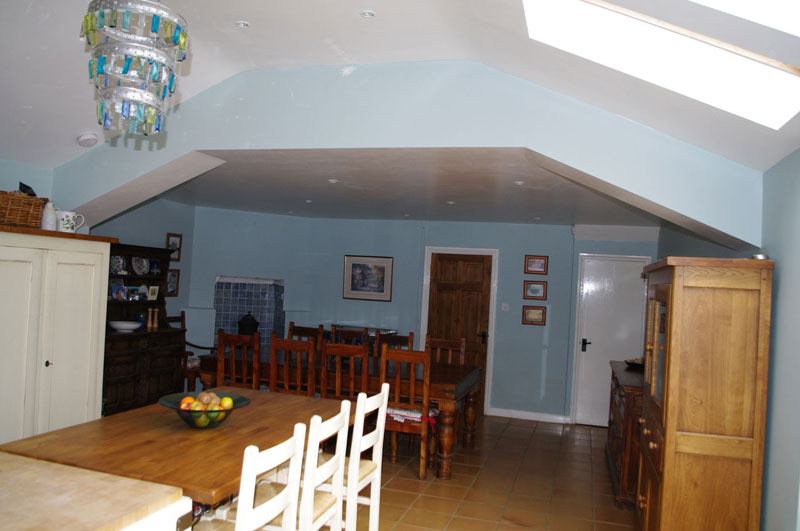

Careful considerations were required during structural design stage to achieve vaulted roof in the kitchen and to minimise the length of downstand beams(*) cutting out the light to Dining Room. This was achieved by placing within the existing floor zone the flat section of a cranked steel beam supporting the rear wall of the house. The cranked portions of the beam follow the pitch of the roof in the extended room and create an aesthetically pleasing feature.

(*)( downstand beams are steel beams supporting the floor above and they are positioned under the floor joists).
